Visualizing My Mac Process Tree with FalkorDB
• Development, Terminal
I have been looking for small datasets to graph, mainly to see what feels smooth and what feels like a hassle. The macOS process tree is an obvious candidate. Every process has a parent, a lot have children, and the shape is already a graph.
I knew I wanted to turn ps output into nodes and edges, so I picked FalkorDB. It is in memory, it is disposable, and it lets me load a snapshot, poke around, and shut it down. I do not have to set anything up beyond the container, so I can load the data and move on.
Run FalkorDB in Docker
This runs FalkorDB locally on the Redis port. I use Docker so I can toss the container when I am done:
docker run --name falkordb -p 6379:6379 falkordb/falkordb:edge
Why In Memory Helps
I am not building a forever database here. I want a snapshot I can explore, then throw away. FalkorDB lets me treat the graph like a scratchpad. Run it, load it, query it, delete it. That is the whole workflow.
Snapshot My Process Tree into a Graph
The loader lives at scripts/falkordb-process-snapshot.mjs. It is AI-generated, so read it like a draft and tweak as needed. It runs ps on macOS, parses the output, and inserts:
- Process nodes with pid, ppid, user, cpu, memory, start time, and command
- PARENT_OF edges from each parent process to its child
Run it like this:
node scripts/falkordb-process-snapshot.mjs --host 127.0.0.1 --port 6379 --graph process_graph
The script prints a snapshot id so I can query that exact view later and keep multiple runs side by side.
The Script
Here is the full loader script so you can reuse it:
import { execSync } from "node:child_process";
import net from "node:net";
import os from "node:os";
const DEFAULT_GRAPH = "process_graph";
const DEFAULT_HOST = "127.0.0.1";
const DEFAULT_PORT = 3000;
const BATCH_SIZE = 200;
function parseArgs(argv) {
const args = {
graph: DEFAULT_GRAPH,
host: DEFAULT_HOST,
port: DEFAULT_PORT,
user: "default",
password: "",
clear: false,
};
for (let i = 0; i < argv.length; i += 1) {
const arg = argv[i];
if (arg === "--graph") args.graph = argv[++i];
else if (arg === "--host") args.host = argv[++i];
else if (arg === "--port") args.port = Number(argv[++i]);
else if (arg === "--user") args.user = argv[++i];
else if (arg === "--password") args.password = argv[++i];
else if (arg === "--clear") args.clear = true;
}
if (!Number.isFinite(args.port)) {
throw new Error("Invalid --port value.");
}
return args;
}
function getProcessListMac() {
const psCommand =
"ps -axo pid=,ppid=,user=,uid=,gid=,stat=,%cpu=,%mem=,rss=,vsz=,lstart=,command=";
const output = execSync(psCommand, { encoding: "utf8" }).trim();
if (!output) return [];
return output.split("\n").map((line) => {
const parts = line.trim().split(/\s+/);
const [
pid,
ppid,
user,
uid,
gid,
stat,
cpu,
mem,
rss,
vsz,
...rest
] = parts;
const lstartParts = rest.slice(0, 5);
const commandParts = rest.slice(5);
const startRaw = lstartParts.join(" ");
const startDate = startRaw ? new Date(startRaw) : null;
return {
pid: Number(pid),
ppid: Number(ppid),
user,
uid: Number(uid),
gid: Number(gid),
stat,
cpu: Number(cpu),
mem: Number(mem),
rss: Number(rss),
vsz: Number(vsz),
start_time: startDate && !Number.isNaN(startDate.getTime())
? startDate.toISOString()
: null,
start_time_raw: startRaw || null,
command: commandParts.join(" "),
};
});
}
function escapeCypherString(value) {
return value.replace(/\\/g, "\\\\").replace(/'/g, "\\'");
}
function cypherValue(value) {
if (value === null || value === undefined || Number.isNaN(value)) {
return "null";
}
if (typeof value === "number") return String(value);
if (typeof value === "boolean") return value ? "true" : "false";
return `'${escapeCypherString(String(value))}'`;
}
function chunkArray(items, size) {
const chunks = [];
for (let i = 0; i < items.length; i += size) {
chunks.push(items.slice(i, i + size));
}
return chunks;
}
class RespClient {
constructor({ host, port }) {
this.socket = net.createConnection({ host, port });
this.buffer = Buffer.alloc(0);
this.waiters = [];
this.socket.on("data", (chunk) => this.#onData(chunk));
this.socket.on("error", (err) => this.#rejectAll(err));
this.socket.on("close", () => this.#rejectAll(new Error("Socket closed.")));
}
#rejectAll(err) {
while (this.waiters.length) {
this.waiters.shift().reject(err);
}
}
#onData(chunk) {
this.buffer = Buffer.concat([this.buffer, chunk]);
while (this.waiters.length) {
const parsed = this.#parseValue(0);
if (!parsed) break;
const { value, nextIndex, error } = parsed;
this.buffer = this.buffer.slice(nextIndex);
const waiter = this.waiters.shift();
if (error) waiter.reject(error);
else waiter.resolve(value);
}
}
#parseLine(startIndex) {
const endIndex = this.buffer.indexOf("\r\n", startIndex);
if (endIndex === -1) return null;
const line = this.buffer.toString("utf8", startIndex, endIndex);
return { line, nextIndex: endIndex + 2 };
}
#parseValue(startIndex) {
if (this.buffer.length <= startIndex) return null;
const prefix = String.fromCharCode(this.buffer[startIndex]);
if (prefix === "+") {
const line = this.#parseLine(startIndex + 1);
if (!line) return null;
return { value: line.line, nextIndex: line.nextIndex };
}
if (prefix === "-") {
const line = this.#parseLine(startIndex + 1);
if (!line) return null;
return {
error: new Error(line.line),
nextIndex: line.nextIndex,
};
}
if (prefix === ":") {
const line = this.#parseLine(startIndex + 1);
if (!line) return null;
return { value: Number(line.line), nextIndex: line.nextIndex };
}
if (prefix === "$") {
const line = this.#parseLine(startIndex + 1);
if (!line) return null;
const length = Number(line.line);
if (length === -1) {
return { value: null, nextIndex: line.nextIndex };
}
const end = line.nextIndex + length + 2;
if (this.buffer.length < end) return null;
const value = this.buffer.toString(
"utf8",
line.nextIndex,
line.nextIndex + length,
);
return { value, nextIndex: end };
}
if (prefix === "*") {
const line = this.#parseLine(startIndex + 1);
if (!line) return null;
const count = Number(line.line);
if (count === -1) {
return { value: null, nextIndex: line.nextIndex };
}
const values = [];
let cursor = line.nextIndex;
for (let i = 0; i < count; i += 1) {
const parsed = this.#parseValue(cursor);
if (!parsed) return null;
if (parsed.error) return parsed;
values.push(parsed.value);
cursor = parsed.nextIndex;
}
return { value: values, nextIndex: cursor };
}
return {
error: new Error(`Unknown RESP prefix: ${prefix}`),
nextIndex: this.buffer.length,
};
}
sendCommand(args) {
const payload = this.#encodeCommand(args);
this.socket.write(payload);
return new Promise((resolve, reject) => {
this.waiters.push({ resolve, reject });
});
}
#encodeCommand(args) {
const parts = [`*${args.length}\r\n`];
for (const arg of args) {
const value = String(arg ?? "");
parts.push(`$${Buffer.byteLength(value)}\r\n${value}\r\n`);
}
return parts.join("");
}
close() {
this.socket.end();
}
}
async function main() {
const args = parseArgs(process.argv.slice(2));
const processes = getProcessListMac();
const snapshotId = `${Date.now()}`;
const snapshotTime = new Date().toISOString();
const host = os.hostname();
const osInfo = `${os.type()} ${os.release()}`;
const client = new RespClient({ host: args.host, port: args.port });
try {
if (args.password) {
if (args.user) {
await client.sendCommand(["AUTH", args.user, args.password]);
} else {
await client.sendCommand(["AUTH", args.password]);
}
}
if (args.clear) {
await client.sendCommand(["GRAPH.DELETE", args.graph]);
}
const snapshotQuery = [
"CREATE (:Snapshot {",
`id: ${cypherValue(snapshotId)},`,
`timestamp: ${cypherValue(snapshotTime)},`,
`host: ${cypherValue(host)},`,
`os: ${cypherValue(osInfo)}`,
"});",
].join(" ");
await client.sendCommand(["GRAPH.QUERY", args.graph, snapshotQuery]);
const nodeChunks = chunkArray(processes, BATCH_SIZE);
for (const chunk of nodeChunks) {
const rows = chunk.map((proc) => {
const props = {
pid: proc.pid,
ppid: proc.ppid,
user: proc.user,
uid: proc.uid,
gid: proc.gid,
stat: proc.stat,
cpu: proc.cpu,
mem: proc.mem,
rss: proc.rss,
vsz: proc.vsz,
start_time: proc.start_time,
start_time_raw: proc.start_time_raw,
command: proc.command,
snapshot_id: snapshotId,
host,
};
return `{ ${Object.entries(props)
.map(([key, value]) => `${key}: ${cypherValue(value)}`)
.join(", ")} }`;
});
const query = [
"UNWIND [",
rows.join(", "),
"] AS row",
"CREATE (p:Process)",
"SET p = row;",
].join(" ");
await client.sendCommand([
"GRAPH.QUERY",
args.graph,
query,
]);
}
const edges = processes.filter((proc) => proc.ppid && proc.ppid > 0);
const edgeChunks = chunkArray(edges, BATCH_SIZE);
for (const chunk of edgeChunks) {
const rows = chunk.map((proc) => {
return `{ pid: ${proc.pid}, ppid: ${proc.ppid}, snapshot_id: ${cypherValue(
snapshotId,
)} }`;
});
const query = [
"UNWIND [",
rows.join(", "),
"] AS row",
"MATCH (p:Process {pid: row.pid, snapshot_id: row.snapshot_id})",
"MATCH (parent:Process {pid: row.ppid, snapshot_id: row.snapshot_id})",
"MERGE (parent)-[:PARENT_OF {snapshot_id: row.snapshot_id}]->(p);",
].join(" ");
await client.sendCommand([
"GRAPH.QUERY",
args.graph,
query,
]);
}
// Minimal feedback without dumping the graph response.
console.log(
`Loaded ${processes.length} processes into graph '${args.graph}' (snapshot ${snapshotId}).`,
);
} finally {
client.close();
}
}
main().catch((err) => {
console.error(err.message);
process.exitCode = 1;
});

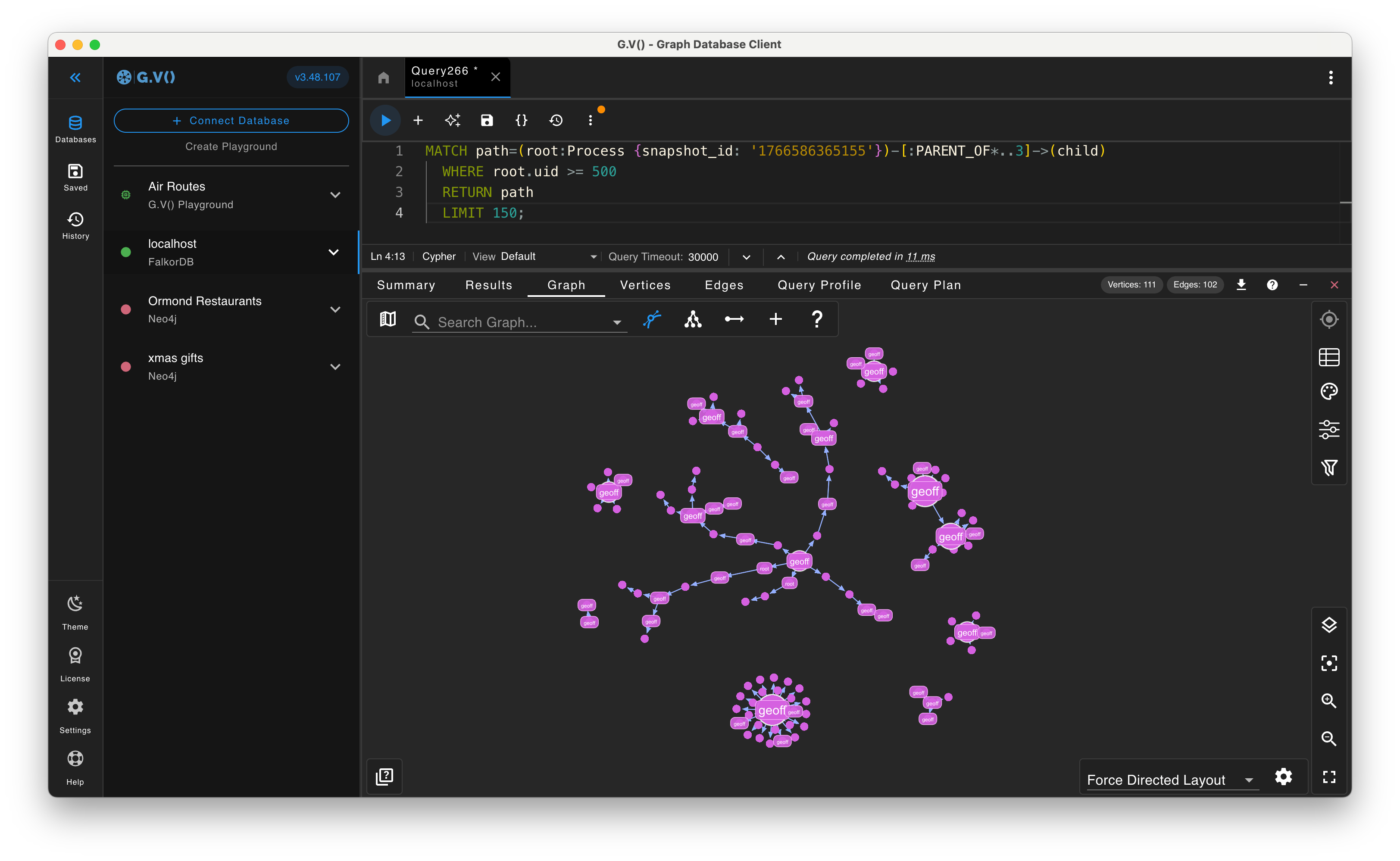

Query a Readable Subgraph
The full graph is honestly pretty clean once it loads, but I almost always start with a trimmed view so it does not feel overwhelming right away.
The easiest filter is uid >= 500. On macOS that is usually where real user accounts start. It drops launchd, system daemons, and kext noise, and leaves mostly the apps and terminals I actually opened. The structure is way more obvious at a glance.
I always include snapshot_id so different runs stay separate. The path pattern [:PARENT_OF*..3] is just a sweet spot I landed on. It is deep enough to show interesting chains like shell to node to child processes, but shallow enough that the layout does not turn into a hairball. If something looks interesting, I just increase the depth or drop the range entirely.
MATCH path=(root:Process {snapshot_id: '1766586365155'})-[:PARENT_OF*..3]->(child)
WHERE root.uid >= 500
RETURN path
LIMIT 150;

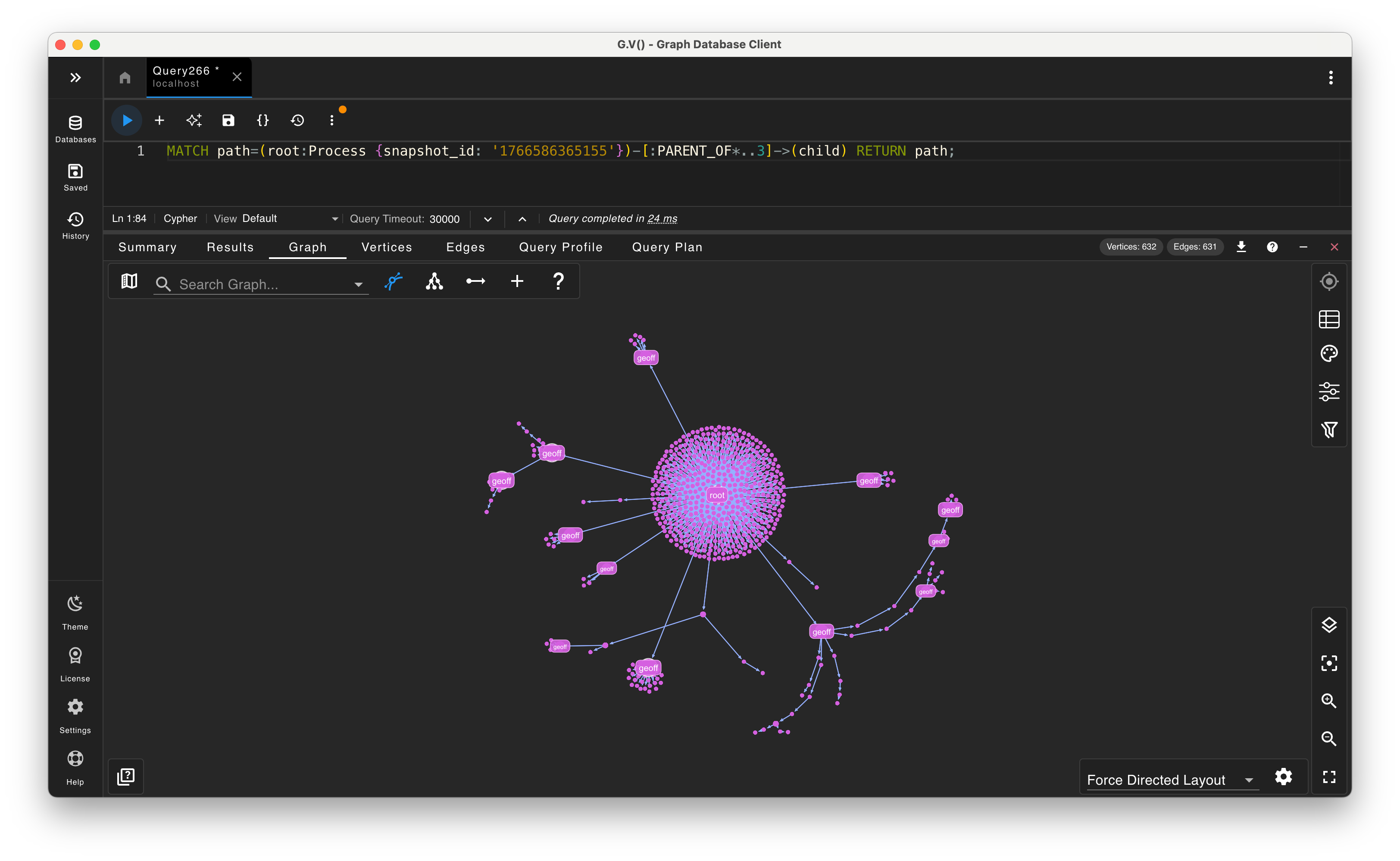

Full Snapshot View
For the full snapshot, I drop the user filter. That brings in launchd and system services and shows how user apps hang off the system tree.
MATCH path=(root:Process {snapshot_id: '1766586365155'})-[:PARENT_OF*..3]->(child)
RETURN path;
Why I Built It
I built this to get real data into the G.V() UI without spending a weekend inventing a fake dataset. I needed something noisy enough to stress pan, zoom, selection, and path highlighting. A process tree already has IDs and parents, so it loads fast and looks alive.
The nice part is how little it takes to get from “I have a list” to “I have a graph I can explore.” It is just a short script, a container, and one query. If you have any structured list with IDs and parents, you already have a graph. Do not overthink it.
If you give this a shot, swap the process data for whatever you have that already has a parent child or “points to” structure. The shape stays the same and the graph part still works. Some quick ideas:
- Browser tabs and which tab opened which one.
- Build pipeline steps and the command that kicked off each one.
- Service calls or API requests linked together by trace IDs.
- Git commits connected to the files they changed and the authors who made them.
Pretty much any list where things relate to other things is already halfway to being a graph. Plug it in, query it, visualize it. It takes less effort than you think.
